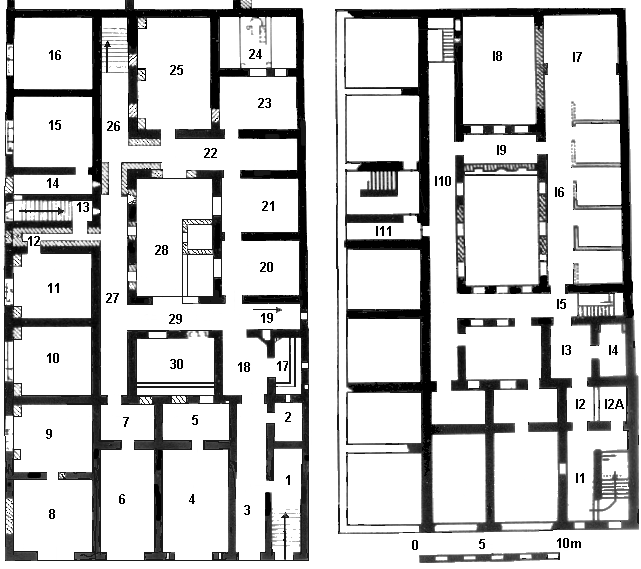

| Plan of the ground floor and first upper floor of the Casa di Diana. |
G0015 - DEDICATIONS TO MITHRAS
- Room 24 (mithraeum), north wall, below the niche of the mithraeum, on the front of the left part of the masonry altar.
- Calza in NSc 1915, 330, with figure (reading by Calza and Paribeni):
| IIE M | |
|
VLAS BABENVS BECTON PROCLVS ERMES FORTVNIV MAXIMVS |
M*V SMAXS BINVXII BINV*II DVX*III ADA NDA BINV*II |
- CIL XIV S, 5293.
- Becatti 1954, 14-15, fig. on p. 14.
- Solin 2020, nr. 4:
[A]cilleus
Ulas carne ⚹ V
Baberius sam(psam?) X S
Bictor binu X II
Proclus binu ⚹ II
Ermes binu ⚹ III
Fortunius ADA
Maximus binu ⚹ II
The lines begin with the names of slaves. The X (sometimes with a vertical bar) stands for "denarii" and is followed by numbers. To the right are presumably gifts to the couple Mithras - Bacchus or for shared banquets, amongst which was wine: BINV for "vinum" (parallels in the mithraeum of Dura Europos). Below the graffiti are a small marble herm of Bacchus in a small niche and, further to the right, a small marble herm with a female head wearing a wreath of leaves, covered with plaster apart from the head.
- Calza
- Animation, Eric Taylor
- Brenders 2015
- Catalogo Generale Beni Culturali 1200089525
G0016 - ELEPHANT
- Room 28, on the inside of the right window frame looking into courtyard 28.
Interpretation: presumably the body of an elephant showing 'criss-cross' markings, a technique frequently used with drawings of animals. Several deer are drawn like this at Herculaneum, as is a horse at Dura Europus. There ia a graffito of a mouse being chased by an elephant with similar markings, which was found on the Piazzale delle Corporazioni.
- Eric Taylor
- Animation, Eric Taylor
- Brenders 2015
G0018 - TRIANGULAR STRUCTURE
- Room 20, west wall: a triangular structure with incised, vertical lines. To the right a few letters, painted it seems: IRE?V.
- Animation, Eric Taylor
- Brenders 2015
CETERA
- G0700. Room 20, west wall: Brenders 2015.
- G0701. Room 20, west wall: MDI: Brenders 2015. Modern?
- G0702. Room 20, west wall: Brenders 2015.
- G0017. Room 21, west wall: next to G0018: Animation, Eric Taylor, Brenders 2015.
- G0704. Room 30, north wall: Brenders 2015
- G0705. Room 30: Brenders 2015. Modern.
