Caseggiato degli Aurighi (III,X,1) - nrs. 554-579

The building
Description and function The rooms of the ground floor of this building are arranged around a courtyard. To the south-west some shops can be recognized. To the north-west is a group of rooms that has been identified as an apartment. Graffiti suggest that it was (for some period of time) a hotel. To the east are halls, presumably used for commercial purposes.
Date Built c. 140 AD.

Nrs. 554-579
Description The south part of the building consists of a large hall with brick piers (rooms 1-9), a "loggia". There are many secondary dividing walls. Most of the piers along the street (Cardo degli Aurighi) were later reinforced by masonry set against the sides. Cornerstones are found in the facade, but also in the interior. We will begin with the description of those in the facade.

Plan of the building

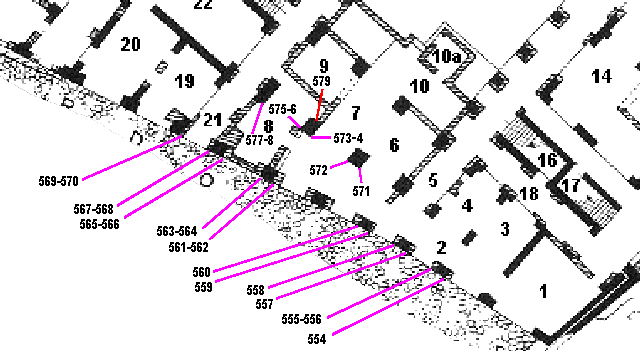

Plan of the south part of the building. After SO I.

We will move from east to west. There are no travertine cornerstones in the first two piers (those flanking the entrance of room 1), but these have not been preserved to a sufficient height. Presumably the next six piers all had cornerstones on both sides, at mid height and high. Not all have been preserved, due to the state of preservation of the facade: two stones have been preserved only in the west side of the third pier and in the seventh and eighth pier; there are no stones in the sixth pier, that has been preserved to a low height only. The final two cornerstones are in the west jamb of the entrance to corridor 21.

Further cornerstones are found in the row of piers behind the facade. There are two low stones in the south side of the south pier of room 7 (571-572). Only the lower part of this pier has been preserved. There seems to be metal in the inside of stone 572; this should be checked. There are low and high stones in the south side of the south pier of room 9 (573-576). Against one of the lower stones (575) a secondary pier was set. In the inside of high stone 574 is a wide hole filled with black cement. In the inside of high stone 576 seems to be a round hole with metal; this should be checked. In the south corner of the north pier of room 8 are a low and a high stone (577-578). Finally, a photograph on the Internet suggests, that there is a centralized stone in the north side of the south pier of room 9. This too should be checked. For this stone we have reserved number 579.
Date The stones belong to the first building phase.
Measurements Not all stones could be measured by VdM's team, because they were too high in the wall, or overgrown. Meas. according to VdM, 554: starts at 1.33; l. 0.38, h. 0.14; 555: starts at 1.33; l. 0.21, h. 0.14; 557: starts at 1.28; l. 0.27, h. 0.16; 558: starts at 1.28; l. 0.38, h. 0.16; 561: starts at 1.59; l. 0.29, h. 0.23; 563: starts at 1.60; l. 0.29, h. 0.18; 565: starts at 1,55; l. 0.22, h. 0.17; 567: starts at 1.51; l. 0.21, h. 0.21; 569: starts at 1.52; l. 0.19, h. 0.15.

Remarks
...

Photographs

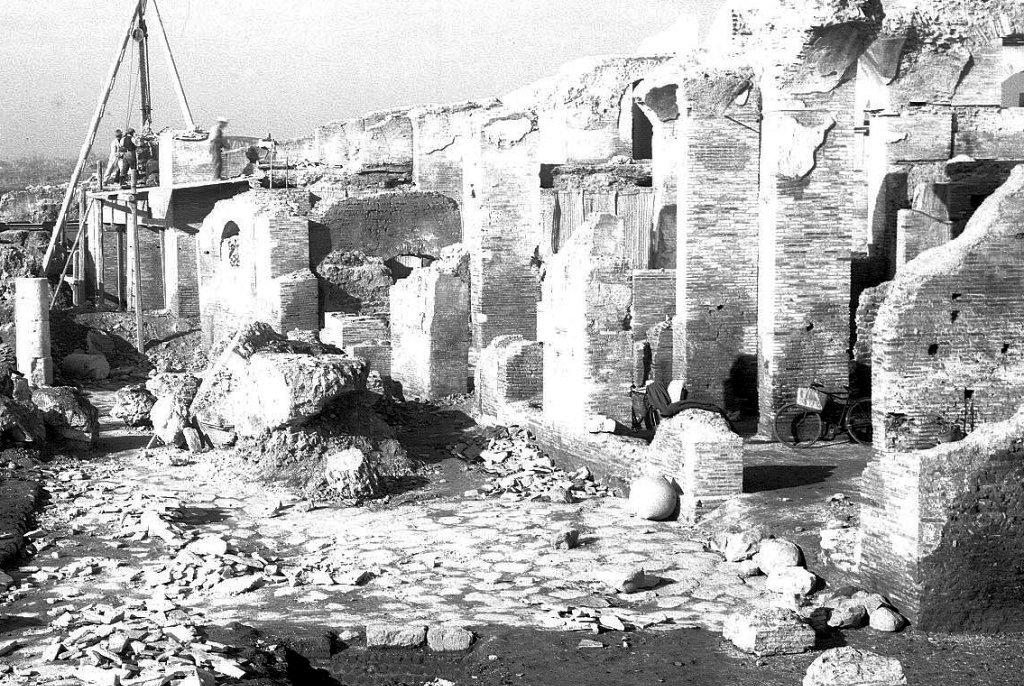

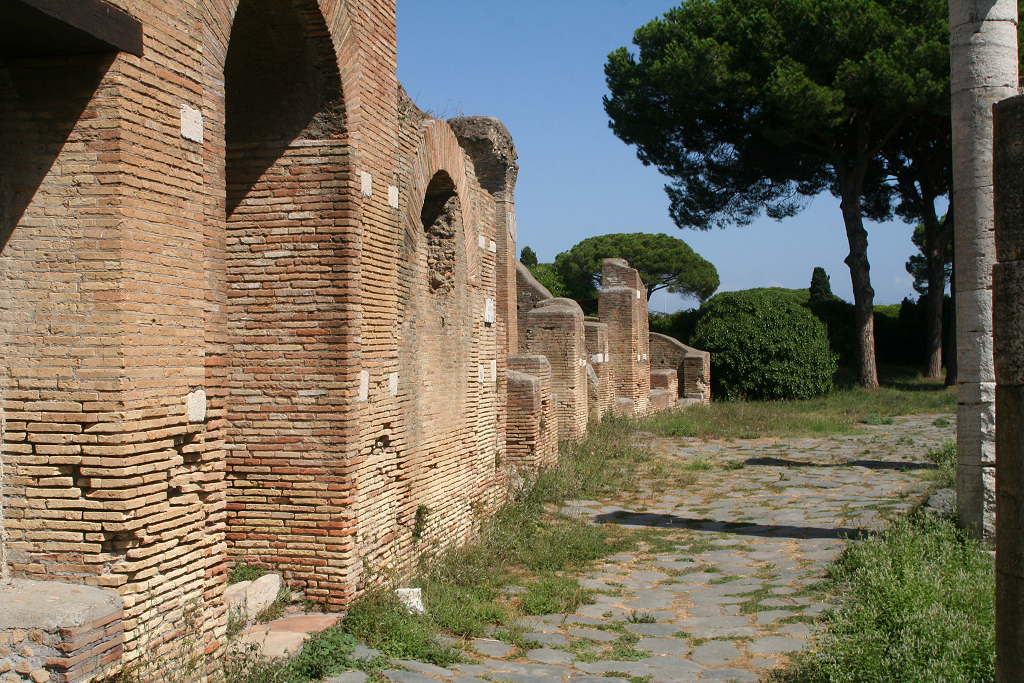

The south facade seen from the west.

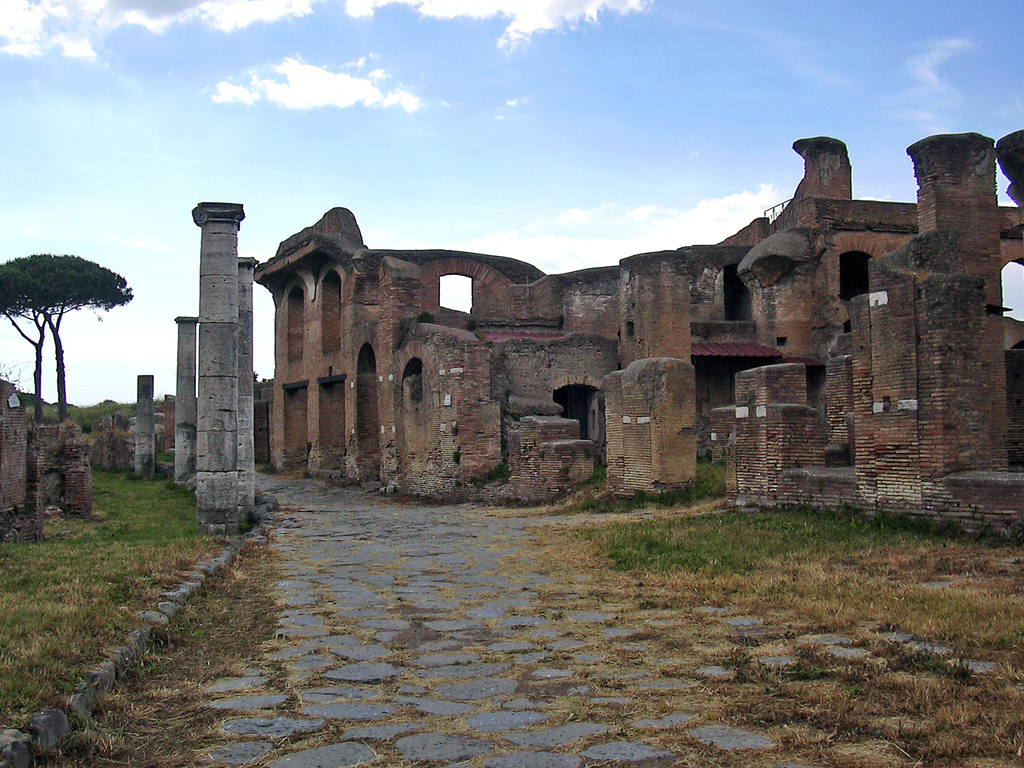

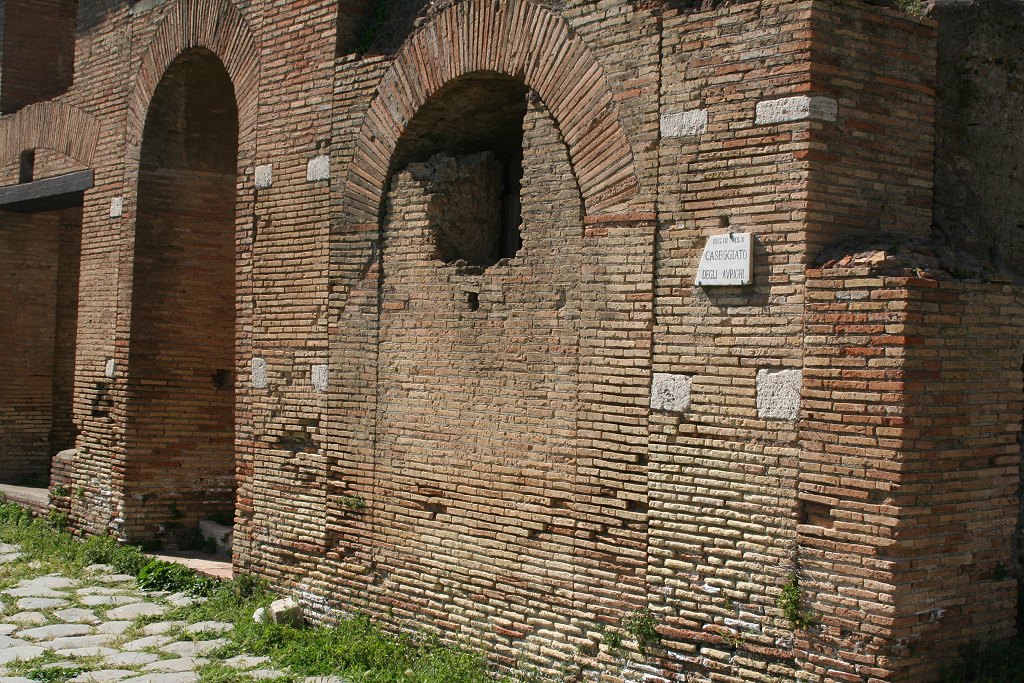

Stones 554-560, seen from the west.


Stones 561-570, seen from the east.

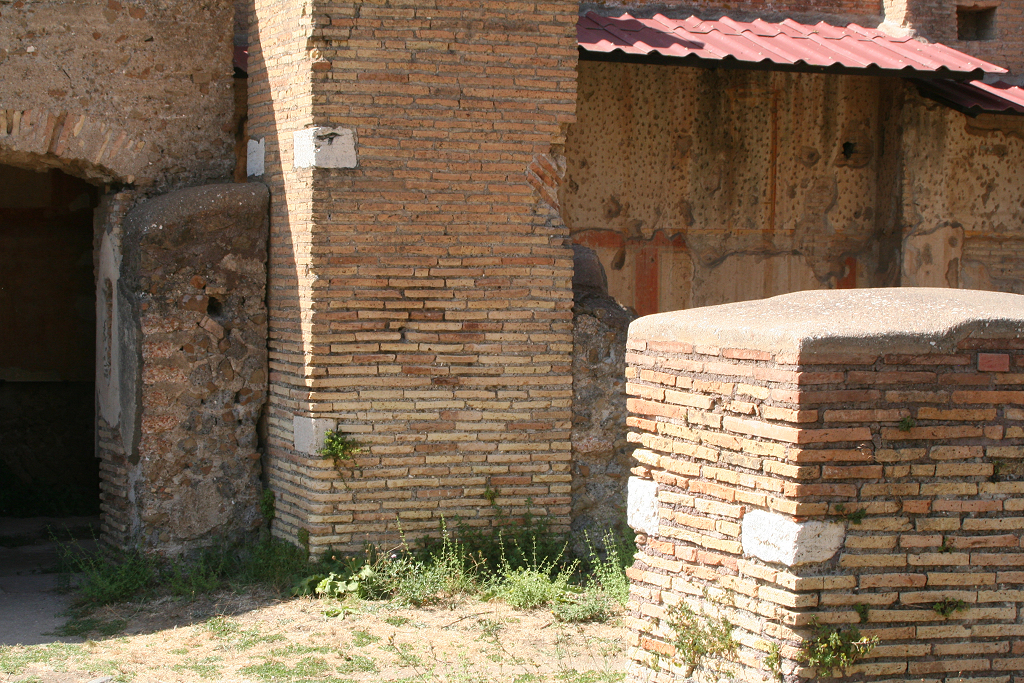

Stones 571-574 and 576, seen from the south-east.

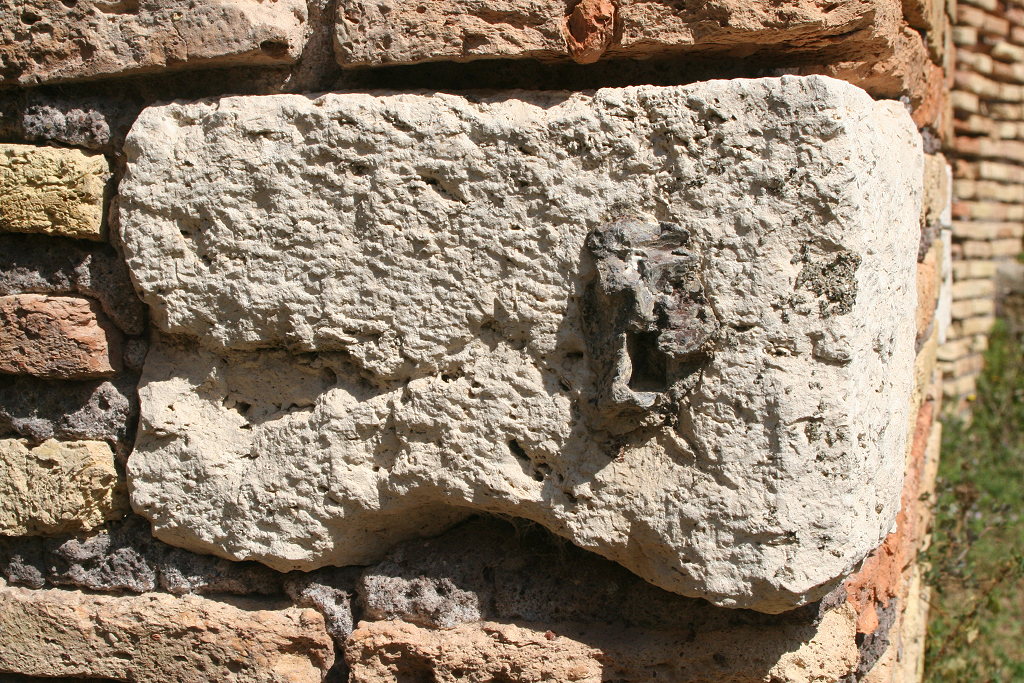

Possible remains of metal in stone 572, seen from the north-west.


Stones 573-574 and 576, seen from the south-east.

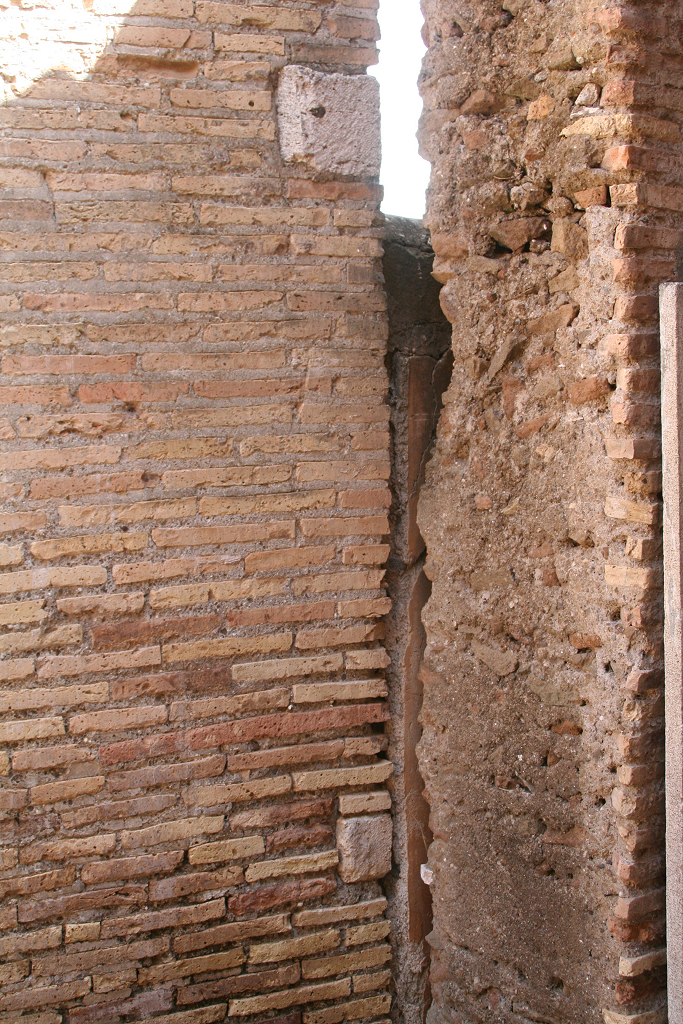

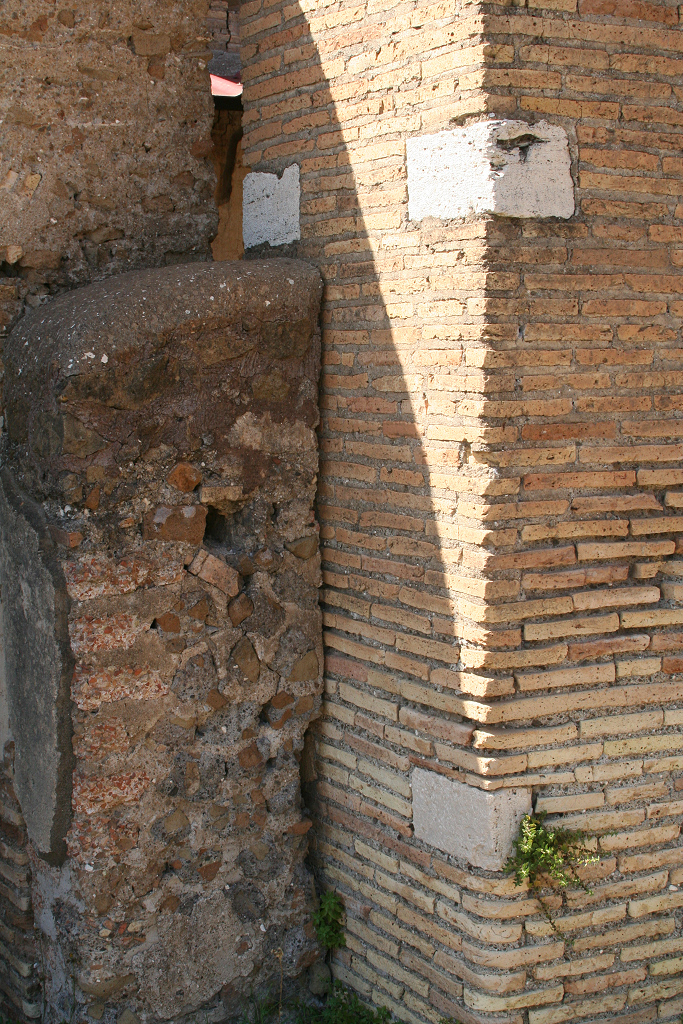

Stones 575-576, seen from the north.

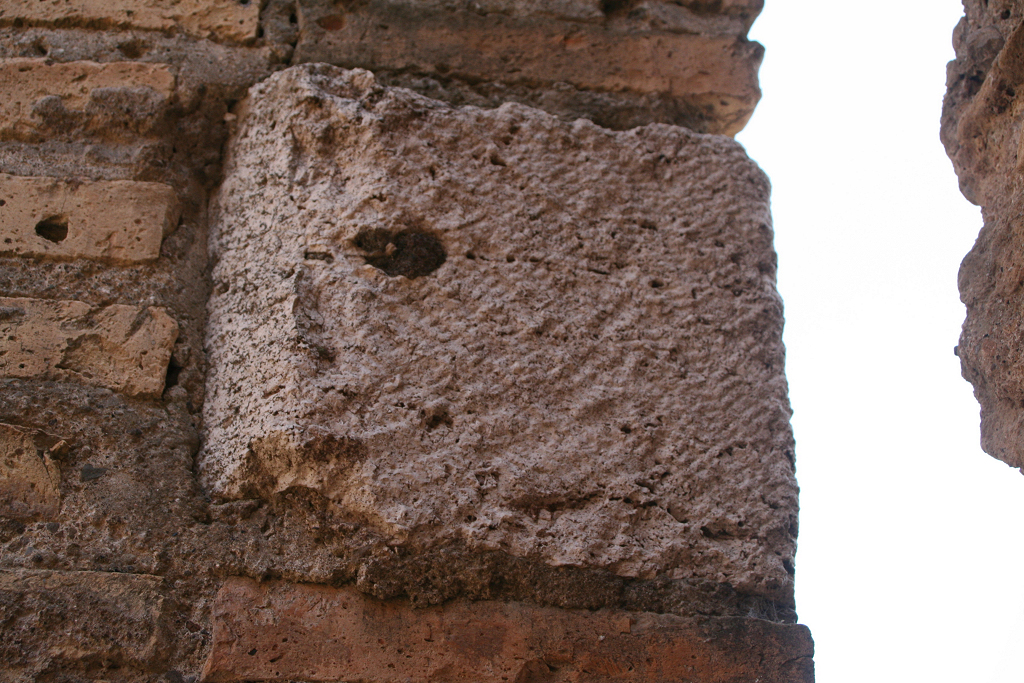

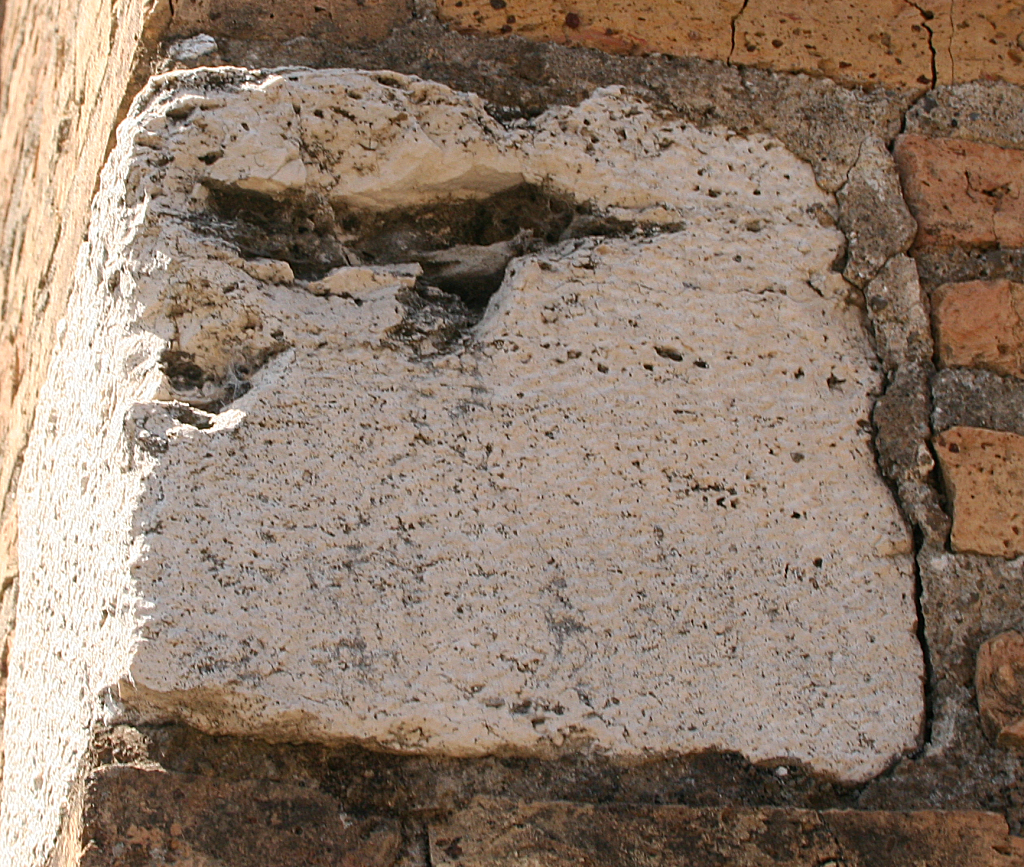

Possible remains of metal in stone 576, seen from the north.

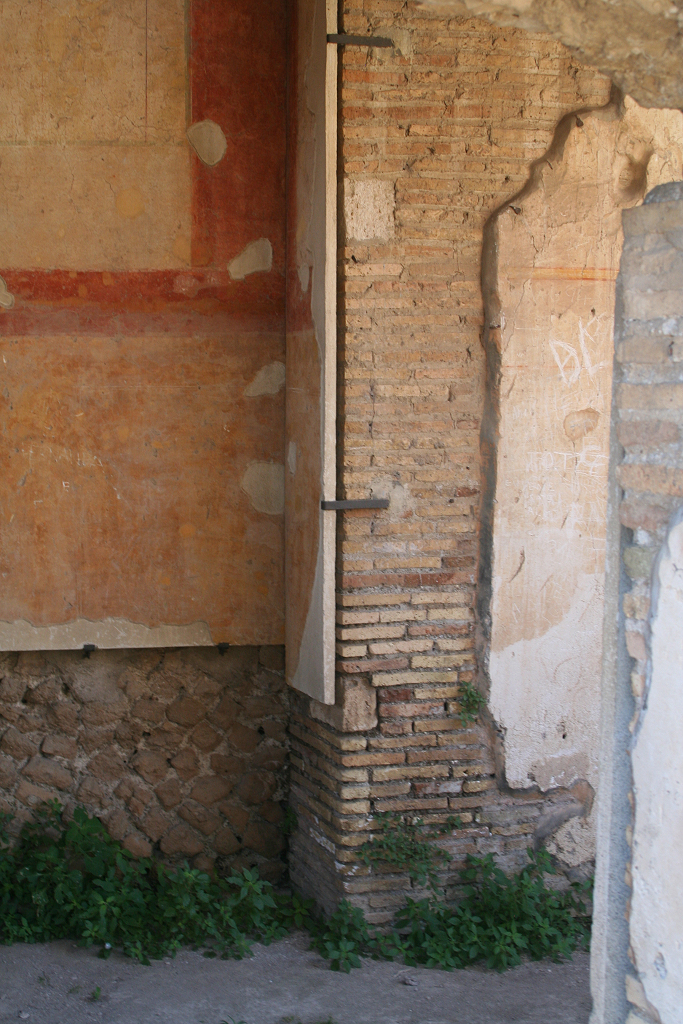

Stones 577-578, seen from the south-east.
